TESTING
Construction Product / Materials Testing
CIDB Holdings Laboratory is fully equipped with latest technology of testing equipment, capable to perform product testing in compliance with the relevant Malaysian Standard and International Standards. The laboratory has been accredited by Standards Malaysia in compliance with ISO/IEC 17025 since 2009.
The main objective of this testing laboratory is to provide testing services for construction products complies to Standard/Specification requirements. We are well equipped to conduct various test in compliance to MS ISO 13006 (Ceramic Tiles), MS 147, MS 1522, MS 795 – Part 1, 2 & 3, MS 2578 (Sanitary Wares), MS 2545 (Flush valve), EN 200, EN 817 (Taps & Mixers) and MS 1135, MS 1498, MS 2397 (Glass in Building).
Certified of
Consignment Sampling & Testing Process
BENEFIT
- Recognised and accredited laboratory ISO/IEC 17025 by Jabatan Standard Malaysia
- Recognised by regulatory bodies i.e. CIDB, SPAN
- Latest technology of testing equipment leading to fast and accurate result.
- Service offer to support national regulation which enforce by government regulatory bodies i.e. CIDB, SPAN.
- Competent personnel with over 15 years working experience in product testing laboratory.
- Service offers with comprehensive testing scopes and competitive prices.
- Strategic collaboration with other local and international partners/laboratories, thus expanding services to other constructions products
SCOPE OF PRODUCT TESTING
No | Product | Standards Reference | Types of Test |
---|---|---|---|

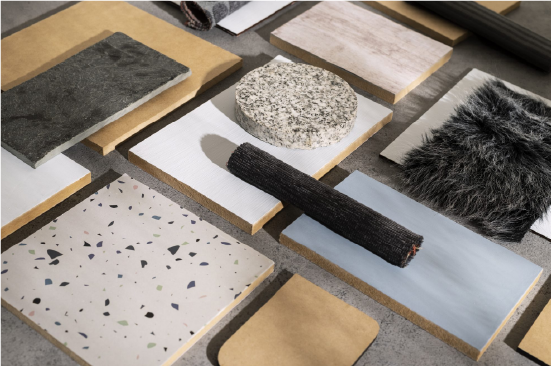

1 | Ceramics Tiles | MS ISO 13006:2014 | • Surface Quality • Dimension • Water Absorption • Breaking Strength & Modulus of Rupture • Resistance to surface abrasion – glazed tiles • Resistance to deep abrasion – unglazed tiles • Crazing test – glazed tile • Chemical resistance • Resistance to staining |
2 | Sanitary Wares | MS 147:2001 | • Surface Quality • Tolerance • Water Absorption & Crazing Test • Warpage • Chemical Resistance • Resistance to Staining |

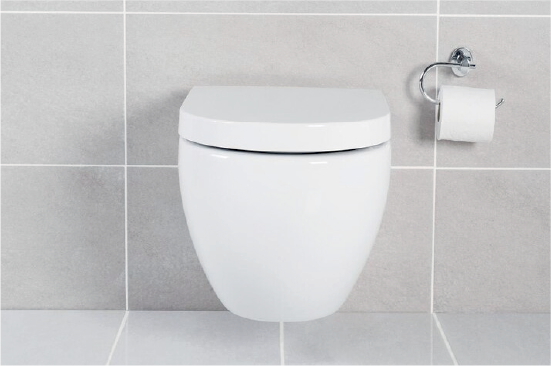

Water Closet Pan | MS 1522:2015 | • Surface Quality • Dimension • Flushing test • Loading test • Endurance Test for Hybrid Wc Pan • Chemical endurance test for hybrid WC pan | |

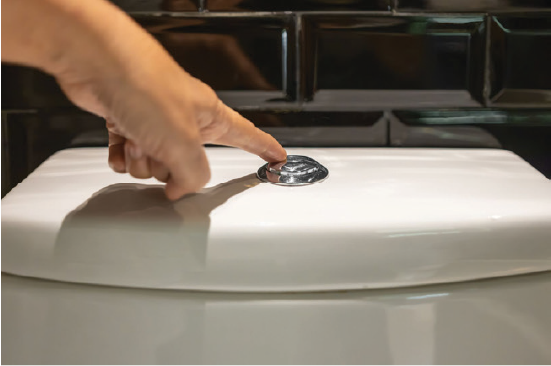

Wc flushing cisterns, Inlet valve & flushing device | MS 795-1, MS 795-2 & MS 795-3 | • Water Line • Volume of Discharge • Rate of Discharge • Air separation Distance • Backflow Prevention • Physical Endurance Test • Chemical Endurance Test | |

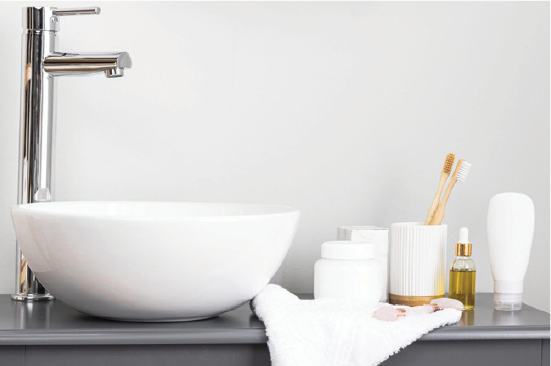

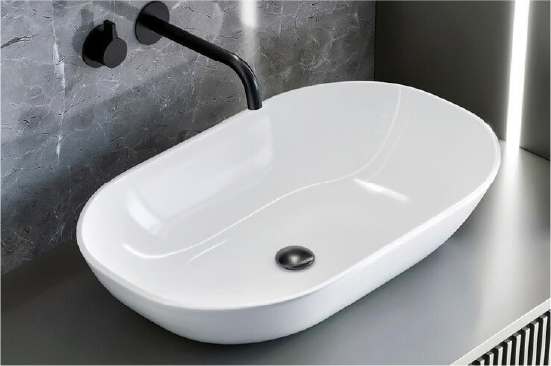

Wash Basin | MS 2578:2014 | • Quality • Dimension • Strength and support • Draining of water | |

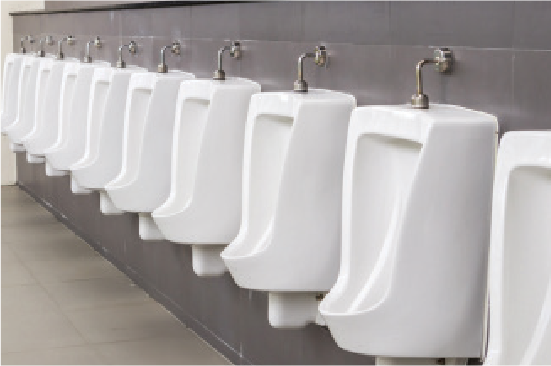

Urinals | MS1799 | ||

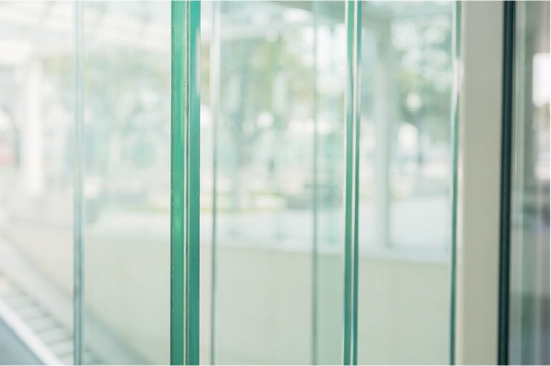

3 | Glass in Building – Float Glass | MS 1135:2009 | • Defect in glass • Dimension and shape • Light transmittance • Solar transmittance • Chemical Composition |

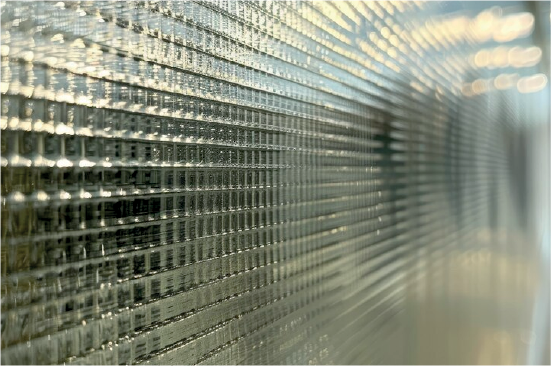

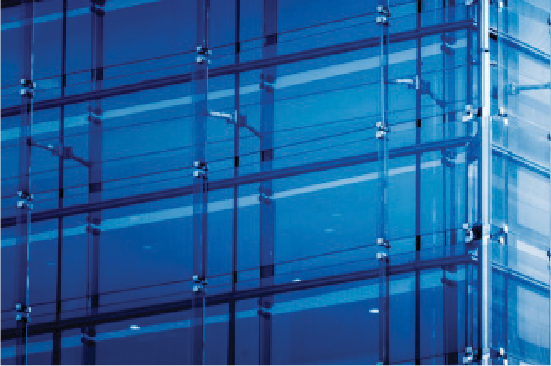

Glass in Building – Safety Glass | MS 1498:2017 | • Dimension • Flatness • Appearance test • Pendulum impact test • Fragmentation • Drop Ball Test • Surface Compression • Boil Test • Weathering Test | |

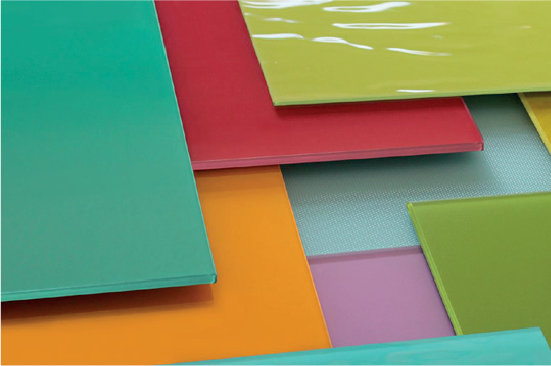

Glass in Building – Coated Glass | MS 2397:2016 | • Solar factors • Light fastness • Abrasion resistance • Acid & alkali resistance • Emissivity • Dimension | |

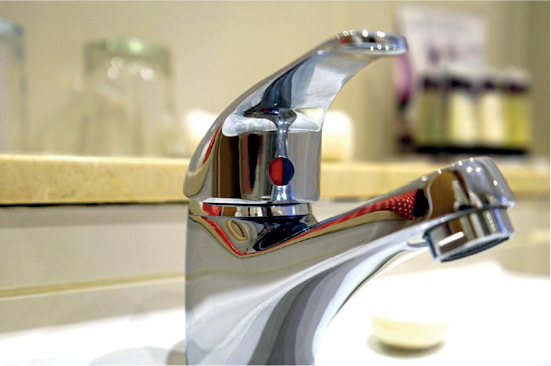

4 | Sanitary Tapware - single tap and combination taps (flow rate test combination taps (flow rate test | BS EN 200:2008 | Flowrate & test pressure (Water Efficient Product Labelling Scheme or WELPS) |
5 | Sanitary tapware - mechanical mixing (flow rate test only) | BS EN 817:2008 | Flowrate & test pressure (Water Efficient Product Labelling Scheme or WELPS) |
Consignment Sampling & Testing Process
Enquiry
- Information to client.
- Costing for sampling and testing with respect to the required standards
Application
- Application from (CIDBH/LAB/QF-05)+Issuance of quotation.
Document Evaluation
- Application and document and evaluation.
Product sampling at point of entry
- Inspection and sampling conducted by CIDBH officer at point of entry.
Sample delivery to CIDBH laboratory.
- Client to arrange transportation of selected sample of CIBH laboratory.
Product Testing
- Receiving of sample at the CIDBH laboratory.
- Conduct sample testing according to the relevant product standards.
Preparation of Test Report
- Test report preparation and approval.
Collection of Test Report
- Collection of the Test Report subject to settlement to testing free.
DOWNLOAD FORM
